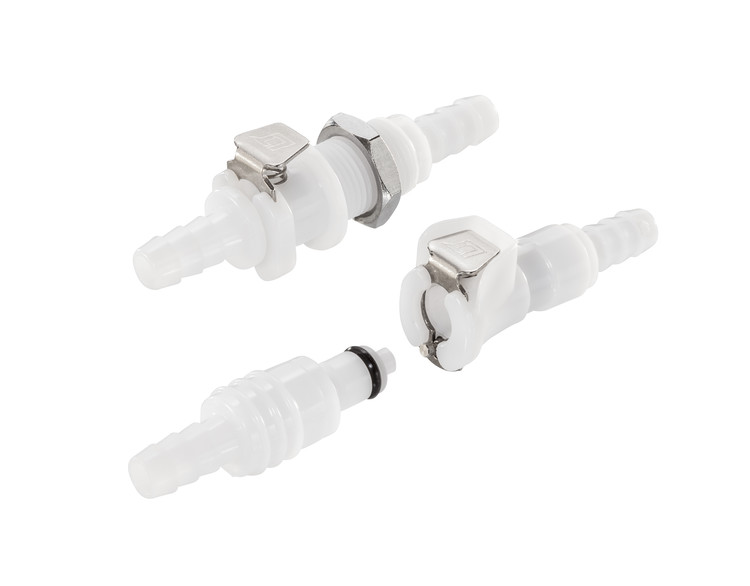

20AC Series Coupling

20 Series-1/8" Flow Size


20시리즈 1/8" 유량의 커플링은 내구성이 좋은 내추럴 아세탈(POM) 열가소성 플라스틱으로 제작됩니다.

아세탈 커플링은 대부분의 약 화학물질에 내성이 있으며, 오랜 시간 사용해도 문제가 없도록 제작됩니다.

이 커플링은 직관적으로 사용이 가능하며, 체결될 때 '찰칵'하는 소리를 냅니다.

20AC 커플링은 20PP 및 20CB 시리즈 커플링과 상호 체결이 가능하며 다른 비슷한 엄지누르개 타입의 커플링과도 서로 상호 체결이 가능합니다.


성능 범위 & 재질 및 구조
20AC 성능 범위
20AC 재질 및 구조
작동 압력 진공에서 120psi(8.3bar)까지
몸통과 끝단아세탈 (POM)
온도-40°C ~ 82°C
내부 밸브아세탈 (POM)
유량 용량1/8"
내부 밸브 스프링316 스테인레스 철


오링FDA 및 NSF 등급의 Buna-N (다른 재질 사용 가능)


 엄지 누르개 스테인레스 철


외부 스프링 및 핀  스테인레스 철
20AC Series 공기 / 물 유량

공기 유량


물 유량



Q = 분당 갤런 단위 유량

Cv = 평균 유량

ΔP =  커플링 통과 압력 차

S = 액체의 비중


* 유량의 범위

     아래 데이터는 LinkTech 커플링의 액체 유량을 나타냅니다. 각각의 커플링 조합은 실온(21°C)에서 테스트 되었습니다.



20AC 시리즈 커플링에 대한 Cv 값


Socket
20ACV-PB2-01
20AC-PB2-01
20ACV-PB2-02
20AC-PB2-02
20ACV-PB2-03
20AC-PB2-03
20ACV-PB2-04
20AC-PB2-04
20ACV-SB2-01
0.02
0.02
0.03
0.03
0.03
0.03
0.03
0.03
20AC-S2-01
0.02
0.03
0.03
0.03
0.03
0.03
0.03
0.03
20ACV-SB2-04
0.03
0.03
0.16
0.22
0.16
0.22
0.21
0.26
20AC-S2-04
0.03
0.03
0.18
0.24
0.19
0.26
0.23
0.45
20ACV-SB3-02
0.03
0.03
0.14
0.17
0.14
0.18
0.15
0.19
20AC-S3-02
0.03
0.03
0.14
0.19
0.14
0.20
0.15
0.27
20ACV-SB3-04
0.03
0.03
0.16
0.22
0.16
0.22
0.21
0.26
20AC-S3-04
0.03
0.03
0.18
0.25
0.19
0.27
0.23
0.45
20ACV-SB8-04
0.03
0.03
0.16
0.20
0.16
0.21
0.17
0.22
20AC-S8-04
0.03
0.03
0.16
0.25
0.17
0.30
0.18
0.40
20ACV-SB1-02
0.03
0.03
0.16
0.24
0.17
0.25
0.20
0.28
20AC-S1-02
0.03
0.03
0.16
0.25
0.17
0.30
0.19
0.50
20ACV-SB1-04
0.03
0.03
0.17
0.25
0.18
0.25
0.23
0.30
20AC-S1-04
0.03
0.03
0.18
0.26
0.19
0.30
0.24
0.50


Socket
20ACV-PB9-04
20AC-PB9-04
20ACV-PB1-02
20AC-PB1-02
20ACV-PB1-04
20AC-PB1-04
20ACV-PB4-04
20AC-PB4-04
20ACV-SB2-01
0.03
0.03
0.03
0.03
0.03
0.03
0.03
0.03
20AC-S2-01
0.03
0.03
0.03
0.03
0.03
0.03
0.03
0.03
20ACV-SB2-04
0.17
0.23
0.19
0.25
0.21
0.25
0.24
0.27
20AC-S2-04
0.24
0.33
0.20
0.45
0.24
0.38
0.27
0.45
20ACV-SB3-02
0.15
0.19
0.18
0.18
0.15
0.18
0.15
0.19
20AC-S3-02
0.15
0.24
0.50
0.27
0.18
0.28
0.16
0.27
20ACV-SB3-04
0.17
0.23
0.19
0.26
0.21
0.26
0.16
0.25
20AC-S3-04
0.23
0.34
0.20
0.45
0.25
0.45
0.26
0.45
20ACV-SB8-04
0.17
0.21
0.17
0.21
0.17
0.21
0.18
0.22
20AC-S8-04
0.18
0.40
0.16
0.40
0.18
0.36
0.21
0.40
20ACV-SB1-02
0.18
0.27
0.20
0.26
0.20
0.29
0.24
0.26
20AC-S1-02
0.18
0.40
0.20
0.50
0.20
0.50
0.24
0.50
20ACV-SB1-04
0.19
0.30
0.21
0.27
0.23
0.28
0.24
0.29
20AC-S1-04
0.21
0.40
0.20
0.50
0.25
0.51
0.26
0.50




Panel Mount Size


　
Panel Opening
Max Panel Thickness
Min Panel Thickness
Socket
0.438"
0.21"
0.03"
Plug
0.438"
0.21"
0.03"


Panel Nut Hex Size
Panel Nut Thread
1/2"
7/16"-24UNF


ㅣ20AC Series Socket

    1. Male Thread Socket

Non-Valved
Valved
Thread Size
Length
Width
Height
20AC-S1-02
20ACV-SB1-02
1/8" NPT
1.00"
0.62"
0.80"
20AC-S1-02BSPT
20ACV-SB1-02BSPT
1/8" BSPT
1.00"
0.62"
0.80"
20AC-S1-04
20ACV-SB1-04
1/4" NPT
1.00"
0.62"
0.80"
20AC-S1-04BSPT
20ACV-SB1-04BSPT
1/4" BSPT
1.00"
0.62"
0.80"
N/A
20ACV-SB1-02UT
1/8" UT
0.97"
0.62"
0.80"

    2. In-Line Hose Barb Socket

Non-Valved
Valved
Tube Size
Metric Tube
Length
Width
Height
20AC-S2-01
20ACV-SB2-01
1/16" ID
1.6mm ID
1.42"
0.62"
0.80"
20AC-S2-02
20ACV-SB2-02
1/8" ID
3.2mm ID
1.65"
0.62"
0.80"
20AC-S2-03
20ACV-SB2-03
3/16" ID
4.8mm ID
1.80"
0.62"
0.80"
20AC-S2-04
20ACV-SB2-04
1/4" ID
6.4mm ID
1.80"
0.62"
0.80"

    3. In-Line PTF Socket

Non-Valved
Valved
Tube Size
Metric Tube
Length
Width
Height
20AC-S9-025
20ACV-SB9-025
5/32" OD, 0.10" ID
4.0mm OD, 2.5mm ID
1.65"
0.62"
0.80"
20AC-S9-04
20ACV-SB9-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.75"
0.62"
0.80"

    4. Panel Mount Hose Barb Socket

Non-Valved
Valved
Tube Size
Metric Tube
Length
Width
Height
20AC-S3-01
20ACV-SB3-01
1/16" ID
1.6mm ID
1.40"
0.62"
0.80"
20AC-S3-02
20ACV-SB3-02
1/8" ID
3.2mm ID
1.65"
0.62"
0.80"
20AC-S3-03
20ACV-SB3-03
3/16" ID
4.8mm ID
1.80"
0.62"
0.80"
20AC-S3-04
20ACV-SB3-04
1/4" ID
6.4mm ID
1.80"
0.62"
0.80"

    5. Panel Mount H.B. Gasket Seal Socket (Gasket Sold Separately)

Non-Valved
Valved
Tube Size
Metric Tube
Length
Width
Height
20AC-S3-01GS
20ACV-SB3-01GS
1/16" ID
1.6mm ID
1.40"
0.62"
0.80"
20AC-S3-02GS
20ACV-SB3-02GS
1/8" ID
3.2mm ID
1.65"
0.62"
0.80"
20AC-S3-03GS
20ACV-SB3-03GS
3/16" ID
4.8mm ID
1.80"
0.62"
0.80"
20AC-S3-04GS
20ACV-SB3-04GS
1/4" ID
6.4mm ID
1.80"
0.62"
0.80"

    6. Panel Mount PTF Socket

Non-Valved
Valved
Tube Size
Metric Tube
Length
Width
Height
20AC-S8-025
20ACV-SB8-025
5/32" OD, 0.10" ID
4.0mm OD, 2.5mm ID
1.70"
0.62"
0.80"
20AC-S8-04
20ACV-SB8-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.72"
0.62"
0.80"

    7. Panel Mount PTF Gasket Seal Socket (Gasket Sold Separately)

Non-Valved
Valved
Tube Size
Metric Tube
Length
Width
Height
20AC-S8-025GS
20ACV-SB8-025GS
5/32" OD, 0.10" ID
4.0mm OD, 2.5mm ID
1.70"
0.62"
0.80"
20AC-S8-04GS
20ACV-SB8-04GS
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.72"
0.62"
0.80"

    8. Elbow Hose Barb Socket

Non-Valved
Valved
Tube Size
Metric Tube
Length
Width
Height
20AC-S4-02
20ACV-SB4-02
1/8" ID
3.2mm ID
1.3"
0.63"
1.3"
20AC-S4-04
20ACV-SB4-04
1/4" ID
6.4mm ID
1.3"
0.63"
1.3"

    9. Elbow PTF Socket

Non-Valved
Valved
Tube Size
Metric Tube
Length
Width
Height
20AC-S10-04
20ACV-SB10-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.3"
0.63"
1.3"
ㅣ20AC Series Plug

    1. Male Thread Plug

Non-Valved
Valved
Thread Size
Length(nv/v)
Width
Height
20AC-PB1-02
20ACV-PB1-02
1/8" NPT
1.03"/1.36"
0.50"
0.50"
20AC-PB1-02BSPT
20ACV-PB1-02BSPT
1/8"BSPT
1.03"/1.36"
0.50"
0.50"
20AC-PB1-04
20ACV-PB1-04
1/4" NPT
1.03"/1.39"
0.56"
0.56"
20AC-PB1-04BSPT
20ACV-PB1-04BSPT
1/4" BSPT
1.03"/1.39"
0.56"
0.56"

    2. In-Line Hose Barb Plug

Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
20AC-PB2-01
20ACV-PB2-01
1/16" ID
1.6mm ID
0.80"/1.48"
0.55"
0.55"
20AC-PB2-02
20ACV-PB2-02
1/8" ID
3.2mm ID
0.97"/1.65"
0.55"
0.55"
20AC-PB2-03
20ACV-PB2-03
3/16" ID
4.8mm ID
1.12"/0.80"
0.55"
0.55"
20AC-PB2-04
20ACV-PB2-04
1/4" ID
6.4mm ID
1.12"/0.80"
0.55"
0.55"

    3. In-Line PTF Plug

Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
20AC-PB9-025
20ACV-PB9-025
5/32" OD, 0.10" ID
4.0mm OD, 2.5mm ID
1.15"/1.65"
0.62"
0.80"
20AC-PB9-04
20ACV-PB9-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.15"/1.57"
0.62"
0.80"

    4. Elbow Hose Barb Plug

Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
20AC-PB4-02
20ACV-PB4-02
1/8" ID
3.2mm ID
0.86"/1.19"
0.50"
0.95"
20AC-PB4-04
20ACV-PB4-04
1/4" ID
6.4mm ID
0.98"/1.19"
0.50"
1.10"

    5. Elbow PTF Plug

Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
20AC-PB10-025
20ACV-PB10-025
5/32" OD, 0.10" ID
4.0mm OD, 2.5mm ID
1.09"/1.20"
0.50"
0.99"
20AC-PB10-04
20ACV-PB10-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.09"/1.20"
0.50"
1.02"

    6. Panel Mount Hose Barb Plug

Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
20AC-PB3-01
20ACV-PB3-01
1/16" ID
1.6mm ID
1.37"/1.47"
0.62"
0.62"
20AC-PB3-02
20ACV-PB3-02
1/8" ID
3.2mm ID
1.60"/1.70"
0.62"
0.62"
20AC-PB3-03
20ACV-PB3-03
3/16" ID
4.8mm ID
1.77"/1.87"
0.62"
0.62"
20AC-PB3-04
20ACV-PB3-04
1/4" ID
6.4mm ID
1.76"/1.86"
0.62"
0.62"

    7. Panel Mount PTF Plug

Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
20AC-PB8-04
20ACV-PB8-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.69"/1.79"
0.62"
0.62"
