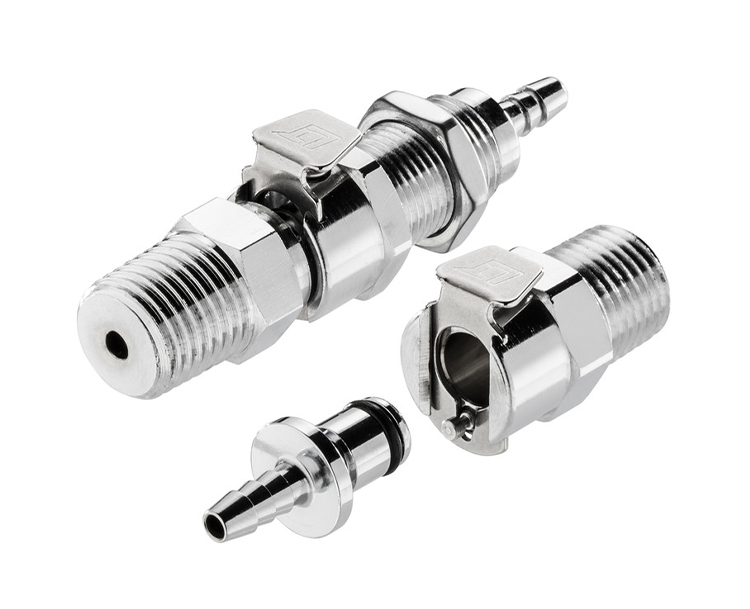

20CB Series Coupling

20 Series-1/8" Flow Size


20CB 음식용 등급의 크롬 도금 동으로 제작된 1/8" 유량 용량을 가진 이 커플링은 내구성이 더 좋으며, 더 높은 압에 버팁니다.

이 커플링은 내부 셧오프 밸브가 포함되거나 포함되지 않은 상태로 공급 가능합니다.

모든 20CB 커플링은 모든 다른 비슷한 엄지 누르개 타입 커플링 뿐만 아니라 20AC나 20PP 커플링과 상호 체결이 가능합니다.


성능 범위 & 재질 및 구조
20CB 성능 범위20CB 재질 및 구조
 작동 압력진공에서 250psi(17.3bar)까지 몸통과 끝단음식용 등급의 크롬/동
온도-40°C ~ 82°
내부 밸브 아세탈 (POM)
유량 용량1/8"
내부 밸브 스프링316 스테인레스 철


오링FDA 및 NSF 등급의 Buna-N (다른 재질 사용 가능)


엄지 누르개스테인레스 철


외부 스프링 및 핀 스테인레스 철
20CB Series 공기 / 물 유량

공기 유량


물 유량



Q = 분당 갤런 단위 유량

Cv = 평균 유량

ΔP =  커플링 통과 압력 차

S = 액체의 비중


* 유량의 범위

     아래 데이터는 LinkTech 커플링의 액체 유량을 나타냅니다. 각각의 커플링 조합은 실온(21°C)에서 테스트 되었습니다.


20CB 시리즈 커플링에 대한 Cv 값


Socket
20CBV-PB2-02
20CB-PB2-02
20CBV-PB2-03
20CB-PB2-03
20CBV-PB2-04
20CB-PB2-04
20CBV-PB9-04
20CBV-SB2-04
0.16
0.22
0.16
0.22
0.21
0.26
0.17
20CB-S2-04
0.18
0.24
0.19
0.26
0.23
0.45
0.24
20CBV-SB3-02
0.14
0.17
0.14
0.18
0.15
0.19
0.15
20CB-S3-02
0.14
0.19
0.14
0.20
0.15
0.27
0.15
20CBV-SB3-04
0.16
0.22
0.16
0.22
0.21
0.26
0.17
20CB-S3-04
0.18
0.25
0.19
0.27
0.23
0.45
0.23
20CBV-SB8-04
0.16
0.20
0.16
0.21
0.17
0.22
0.17
20CB-S8-04
0.16
0.25
0.17
0.30
0.18
0.40
0.18
20CBV-SB1-02
0.16
0.24
0.17
0.25
0.20
0.28
0.18
20CB-S1-02
0.16
0.25
0.17
0.30
0.19
0.50
0.18
20CBV-SB1-04
0.17
0.25
0.18
0.25
0.23
0.30
0.19
20CB-S1-04
0.18
0.26
0.19
0.30
0.24
0.30
0.21
　
Socket
20CB-PB9-04
20CBV-PB1-02
20CB-PB1-02
20CBV-PB1-04
20CB-PB1-04
20CBV-PB4-04
20CB-PB4-04
20CBV-SB2-04
0.23
0.19
0.25
0.21
0.25
0.24
0.27
20CB-S2-04
0.33
0.20
0.45
0.24
0.38
0.27
0.45
20CBV-SB3-02
0.19
0.18
0.18
0.15
0.18
0.15
0.19
20CB-S3-02
0.24
0.15
0.27
0.18
0.28
0.16
0.27
20CBV-SB3-04
0.23
0.19
0.25
0.21
0.26
0.16
0.25
20CB-S3-04
0.34
0.20
0.45
0.25
0.45
0.26
0.45
20CBV-SB8-04
0.21
0.17
0.21
0.17
0.21
0.18
0.22
20CB-S8-04
0.40
0.16
0.40
0.18
0.36
0.21
0.40
20CBV-SB1-02
0.27
0.20
0.25
0.20
0.29
0.24
0.26
20CB-S1-02
0.40
0.20
0.50
0.20
0.50
0.24
0.50
20CBV-SB1-04
0.30
0.21
0.27
0.23
0.28
0.24
0.29
20CB-S1-04
0.40
0.20
0.50
0.25
0.51
0.26
0.50



Panel Mount Size


　
Panel Opening
Max Panel Thickness
Min Panel Thickness
Socket
0.5"
0.5"
0.05"
Plug
0.5"
0.3"
0.05"


Panel Nut Hex Size
Panel Nut Thread
5/8"
1/2"-24UNS


ㅣ20CB Series Socket

     1. Male Thread Socket

Non-Valved
Valved
Thread Size
Length
Width
Height
20CB-S1-02
20CBV-SB1-02
1/8"NPT
1.00"
0.62"
0.80"
20CB-S1-02BSPT
20CBV-SB1-02BSPT
1/8"BSPT
1.00"
0.62"
0.80"
20CB-S1-04
20CBV-SB1-04
1/4"NPT
1.00"
0.62"
0.80"
20CB-S1-04BSPT
20CBV-SB1-04BSPT
1/4"BSPT
1.00"
0.62"
0.80"


     2. In-Line Hose Barb Socket

Non-Valved
Valved
Tube Size
Metric Tube
Length
Width
Height
20CB-S2-02
20CBV-SB2-02
1/8" ID
3.2mm ID
1.65"
0.62"
0.80"
20CB-S2-03
20CBV-SB2-03
3/16" ID
4.8mm ID
1.65"
0.62"
0.80"
20CB-S2-04
20CBV-SB2-04
1/4" ID
6.4mm ID
1.65"
0.62"
0.80"

     3. In-Line PTF Socket

Non-Valved
Valved
Tube Size
Metric Tube
Length
Width
Height
20CB-S9-025
20CBV-SB9-025
5/32" OD, 0.10" ID
4.0mm OD, 2.5mm ID
1.68"
0.63"
0.80"
20CB-S9-04
20CBV-SB9-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.78"
0.63"
0.80"

     4. Panel Mount Hose Barb Socket

Non-Valved
Valved
Tube Size
Metric Tube
Length
Width
Height
20CB-S3-02
20CBV-SB3-02
1/8" ID
3.2mm ID
1.68"
0.62"
0.80"
20CB-S3-03
20CBV-SB3-03
3/16" ID
4.8mm ID
1.89"
0.62"
0.80"
20CB-S3-04
20CBV-SB3-04
1/4" ID
6.4mm ID
1.89"
0.62"
0.80"

     5. Panel Mount PTF Socket

Non-Valved
Valved
Tube Size
Metric Tube
Length
Width
Height
20CB-S8-025
20CBV-SB8-025
5/32" OD, 0.10" ID
4.0mm OD, 2.5mm ID
1.68"
0.63"
0.80"
20CB-S8-04
20CBV-SB8-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.78"
0.63"
0.80"

     6. Panel Mount Male Thread Socket

Non-Valved
Valved
Thread Size
Length
Width
Height
20CB-S12-02
20CBV-SB2-02
1/8"NPT
0.62"
0.80"
0.80"

     7. Panel Mount Female Thread Socket

Non-Valved
Valved
Thread Size
Length
Width
Height
20CB-S19-1032
20CBV-SB19-1032
10/32 UNF
0.62"
0.80"
0.80"
ㅣ20CB Series Plugs

     1. Male Thread Plug

Non-Valved
Valved
Thread Size
Length(nv/v)
Width
Height
20CB-PB1-02
20CBV-PB1-02
1/8"NPT
1.05"/1.45"
0.50"
0.50"
20CB-PB1-02BPBPT
20CBV-PB1-02BSPT
1/8"BSPT
1.05"/1.45"
0.50"
0.50"
20CB-PB1-04
20CBV-PB1-04
1/4"NPT
1.05"/1.45"
0.75"
0.75"
20CB-PB1-04BPBPT
20CBV-PB1-04BSPT
1/4"BSPT
1.05"/1.45"
0.75"
0.75"

     2. Female Thread Plug

Non-Valved
Valved
Thread Size
Length(nv/v)
Width
Height
20CB-PB13-1032
20CBV-PB13-1032
10/32 UNF
0.63"/1.35"
0.56"
0.56"
20CB-PB13-02
N/A
1/8"NPT
0.95/n/a
0.56"
0.56"
20CB-PB13-02BSPT
N/A
1/4"BSPT
0.95/n/a
0.56"
0.56"
20CB-PB13-04
N/A
1/4"NPT
1.15"/n/a
0.63"
0.63"

     3. In-Line Hose Barb PlugFemale Thread Plug

Non-Valved
Non-Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
20CB-PB2-02
20CBV-PB2-02
1/8" ID
3.2mm ID
0.98"/1.65"
0.63"
0.63"
20CB-PB2-03
20CBV-PB2-03
3/16" ID
4.8mm ID
1.13"/1.80"
0.63"
0.63"
20CB-PB2-04
20CBV-PB2-04
1/4" ID
6.4mm ID
1.13"/1.85"
0.63"
0.63"

     4. In-Line PTF Plug

Non-Valved
Non-Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
20CB-PB9-025
20CBV-PB9-025
5/32" OD, 0.10" ID
4.0mm OD, 2.5mm ID
1.15"/1.55"
0.63"
0.63"
20CB-PB9-04
20CBV-PB9-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.15"/1.55"
0.63"
0.63"
20CB-PB9-06
20CBV-PB9-06
3/8" OD, 1/4" ID
9.5mm OD, 6.4mm ID
1.28"/1.70"
0.55"
0.55"

     5. Panel Mount Hose Barb Plug

Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
20CB-PB3-02
20CBV-PB3-02
1/8" ID
3.2mm ID
1.65"/1.77"
0.62"
0.62"
20CB-PB3-03
20CBV-PB3-03
3/16" ID
4.8mm ID
1.82"/1.92
0.62"
0.62"
20CB-PB3-04
20CBV-PB3-04
1/4" ID
6.4mm ID
1.82"/1.92
0.62"
0.62"

     6. Panel Mount PTF Plug

Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
20CB-PB8-025
20CBV-PB8-025
5/32" OD, 0.10" ID
4.0mm OD, 2.5mm ID
1.67"/1.77"
0.62"
0.62"
20CB-PB8-04
20CBV-PB8-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.69"/1.79"
0.62"
0.62"

     7. Elbow Hose Barb Plug

Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
20CB-PB4-02
20CBV-PB4-02
1/8" ID
3.2mm ID
1.20"/1.30"
0.63"
0.80"
20CB-PB4-04
20CBV-PB4-04
1/4" ID
6.4mm ID
1.20"/1.30"
0.63"
0.80"

     8. Elbow PTF Plug

Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
20CB-PB10-04
20CBV-PB10-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.20"/1.30"
0.63"
1.15"

     9. Panel Mount Hose Barb Plug, Non Rotational

Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
20CB-PB20-02
20CBV-PB20-02
1/8" ID
3.2mm ID
1.65"/1.75"
0.62"
0.62"
20CB-PB20-03
20CBV-PB20-03
3/16" ID
4.8mm ID
1.82"/1.92"
0.62"
0.62"
20CB-PB20-04
20CBV-PB20-04
1/4" ID
6.4mm ID
1.82"/1.92"
0.62"
0.62"

     10. Panel Mount PTF Plug, Non Rotational

Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
20CB-PB21-04
20CBV-PB21-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.69"/1.79"
0.62"
0.62"
