70 Union & Reducing Tees
 |  |

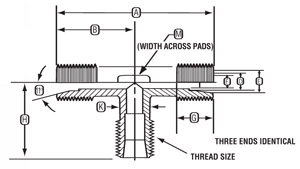

| Tube O.D. | Thread | A ±1/64 | B ±1/64 | D +.005/-.010 | E | F ±1/64 | G ±1/64 | H ±1/64 | K ±1/64 | M ±1/64 | Part No. |
| 1/8" | 5/16-24 | 1-1/8 | 9/16 | 1/8" | .175 - .180 | .109 | 7/16 | 17/32 | 1/4 | 1/4 | 70-2 |
| 1/4" | 7/16-20 | 1-7/16 | 47/64 | 1/4" | .330 - .335 | .218 | 15/32 | 23/32 | 3/8 | 23/64 | 70-4 |
| 5/16" | 1/2-20 | 1-19/32 | 13/16 | 5/16" | .380 - .385 | .232 | 31/64 | 13/16 | 7/16 | 29/64 | 70-5 |
| 3/8" | 5/8-20 | 1-59/64 | 31/32 | 3/8" | .460 - .465 | .250 | 19/32 | 31/32 | 35/64 | 35/64 | 70-6 |
| 1/2" | 3/4-20 | 2-1/8 | 1-1/16 | 1/2" | .590 - .595 | .375 | 11/16 | 1-1/16 | 43/64 | 11/16 | 70-8 |
| 5/8" | 7/8-20 | 2-35/64 | 1-17/64 | 5/8" | .715 - .720 | .500 | 45/64 | 1-1/4 | 43/64 | 53/64 | 70-10 |
| 3/4" | 1-1/16-20 | 3-3/32 | 1-35/64 | 3/4" | .860 - .865 | .625 | 13/16 | 1-35/64 | 1 | 1-1/16 | 70-12 |
| 7/8" | 1-3/16-16 | 3-3/32 | 1-35/64 | 7/8" | .995 - 1.000 | .750 | 7/8 | 1-35/64 | 1-1/8 | 1-3/16 | 70-14 |
