Fitting&Connector Thread Adapter

Adapter - Metric Thread 사양표

	PP	NK	NN	WN	MN	HDPE
5mm Thread	iT5MM-01-1N	iT5MM-01-7N	iT5MM-01-3N		iT5MM-01-13N	iT5MM-01-4N
• 1/16"	iT5MM-201-71N			iT5MM-201-73W
5mm Thread	iT5MM-02-1N	iT5MM-02-7N	iT5MM-02-3N		iT5MM-02-13N	iT5MM-02-4N
• 3/32"	iT5MM-202-71N			iT5MM-202-73W
5mm Thread	iT5MM-03-1N	iT5MM-03-7N	iT5MM-03-3N		iT5MM-03-13N	iT5MM-03-4N
• 1/8"	iT5MM-203-71N			iT5MM-203-73W
5mm Thread	iT5MM-04-1N	iT5MM-04-7N	iT5MM-04-3N		iT5MM-04-13N	iT5MM-04-4N
• 5/32"	iT5MM-204-71N			iT5MM-204-73W
6mm Thread	iT6MM-01-1N	iT6MM-01-7N	iT6MM-01-3N		iT6MM-01-13N	iT6MM-01-4N
• 1/16"
6mm Thread	iT6MM-02-1N	iT6MM-02-7N	iT6MM-02-3N		iT6MM-02-13N	iT6MM-02-4N
• 3/32"
6mm Thread	iT6MM-03-1N	iT6MM-03-7N	iT6MM-03-3N		iT6MM-03-13N	iT6MM-03-4N
• 1/8"
6mm Thread	iT6MM-04-1N	iT6MM-04-7N	iT6MM-04-3N		iT6MM-04-13N	iT6MM-04-4N
• 5/32"
6mm Thread	iT6MM-05-1N	iT6MM-05-7N	iT6MM-05-3N		iT6MM-05-13N	iT6MM-05-4N
• 3/16"

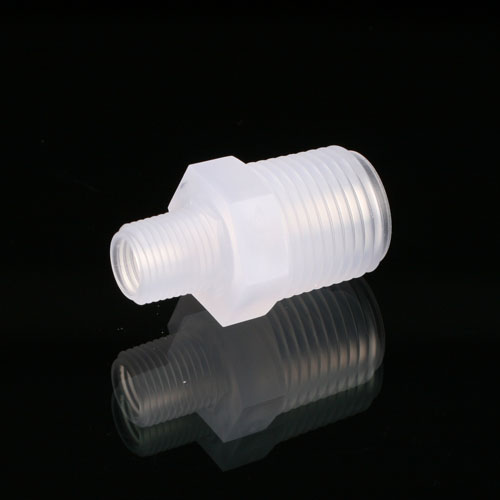

Adapter - Inch Thread 사양표

	PP	NK	NN	WN	MN	HDPE
10-32 UNF	iT32U-01-1N	iT32U-01-7N	iT32U-01-3N	iT32U-01-3W	iT32U-01-13N	iT32U-01-4N
• 1/16"
10-32 UNF	iT32U-02-1N	iT32U-02-7N	iT32U-02-3N	iT32U-02-3W	iT32U-02-13N	iT32U-02-4N
• 3/32"
10-32 UNF	iT32U-03-1N	iT32U-03-7N	iT32U-03-3N	iT32U-03-3W	iT32U-03-13N	iT32U-03-4N
• 1/8"
10-32 UNF	iT32U-04-1N	iT32U-04-7N	iT32U-04-3N	iT32U-04-3W	iT32U-04-13N	iT32U-04-4N
• 5/32"
10-32 UNF Taper	iT32UT-01-1N	iT32UT-01-7N	iT32UT-01-3N	iT32UT-01-3W	iT32UT-01-13N	iT32UT-01-4N
• 1/16"
10-32 UNF Taper	iT32UT-02-1N	iT32UT-02-7N	iT32UT-02-3N	iT32UT-02-3W	iT32UT-02-13N	iT32UT-02-4N
• 3/32"
10-32 UNF Taper	iT32UT-03-1N	iT32UT-03-7N	iT32UT-03-3N	iT32UT-03-3W	iT32UT-03-13N	iT32UT-03-4N
• 1/8"
10-32 UNF Taper	iT32UT-04-1N	iT32UT-04-7N	iT32UT-04-3N	iT32UT-04-3W	iT32UT-04-13N	iT32UT-04-4N
• 5/32"
1/4-28 UNF	iT06U-01-1N	iT06U-01-7N	iT06U-01-3N	iT06U-01-3W	iT06U-01-13N	iT06U-01-4N
• 1/16"
1/4-28 UNF	iT06U-02-1N	iT06U-02-7N	iT06U-02-3N	iT06U-02-3W	iT06U-02-13N	iT06U-02-4N
• 3/32"
1/4-28 UNF	iT06U-03-1N	iT06U-03-7N	iT06U-03-3N	iT06U-03-3W	iT06U-03-13N	iT06U-03-4N
• 1/8"
1/4-28 UNF	iT06U-04-1N	iT06U-04-7N	iT06U-04-3N	iT06U-04-3W	iT06U-04-13N	iT06U-04-4N
• 5/32"
1/4-28 UNF	iT06U-05-1N	iT06U-05-7N	iT06U-05-3N	iT06U-05-3W	iT06U-05-13N	iT06U-05-4N
• 3/16"
1/16" NPT	iT01-01-1N	iT01-01-7N	iT01-01-3N	iT01-01-3W	iT01-01-13N	iT01-01-4N
• 1/16"
1/16" NPT	iT01-02-1N	iT01-02-7N	iT01-02-3N	iT01-02-3W	iT01-02-13N	iT01-02-4N
• 3/32"
1/16" NPT	iT01-03-1N	iT01-03-7N	iT01-03-3N	iT01-03-3W	iT01-03-13N	iT01-03-4N
• 1/8"
1/16" NPT	iT01-04-1N	iT01-04-7N	iT01-04-3N	iT01-04-3W	iT01-04-13N	iT01-04-4N
• 5/32"
1/16" NPT	iT01-05-1N	iT01-05-7N	iT01-05-3N	iT01-05-3W	iT01-05-13N	iT01-05-4N
• 3/16"
1/16" NPT	iT01-06-1N	iT01-06-7N	iT01-06-3N		iT01-06-13N	iT01-06-4N
• 1/4"
1/8" NPT	iT03-01-1N	iT03-01-7N	iT03-01-3N	iT03-01-3W		iT03-01-4N
• 1/16"
1/8" NPT	iT03-02-1N	iT03-02-7N	iT03-02-3N	iT03-02-3W		iT03-02-4N
• 3/32"
1/8" NPT	iT03-03-1N	iT03-03-7N	iT03-03-3N	iT03-03-3W	iT03-03-13N	iT03-03-4N
• 1/8"
1/8" NPT	iT03-04-1N	iT03-04-7N	iT03-04-3N	iT03-04-3W		iT03-04-4N
• 5/32"
1/8" NPT	iT03-05-1N	iT03-05-7N	iT03-05-3N	iT03-05-3W		iT03-05-4N
• 3/16"
1/8" NPT	iT03-06-1N	iT03-06-7N	iT03-06-3N	iT03-06-3W	iT03-06-13N	iT03-06-4N
• 1/4"
1/8" NPT	iT03-08-1N	iT03-08-7N	iT03-08-3N	iT03-08-3W		iT03-08-4N
• 5/16"
1/8" NPT	iT03-10-1N	iT03-10-7N	iT03-10-3N	iT03-10-3W	iT03-10-13N	iT03-10-4N
• 3/8"
1/4" NPT	iT06-03-1N	iT06-03-7N	iT06-03-3N	iT06-03-3W	iT06-03-13N	iT06-03-4N
• 1/8"
1/4" NPT	iT06-04-1N	iT06-04-7N	iT06-04-3N	iT06-04-3W	iT06-04-13N	iT06-04-4N
• 5/32"
1/4" NPT	iT06-05-1N	iT06-05-7N	iT06-05-3N	iT06-05-3W	iT06-05-13N	iT06-05-4N
• 3/16"
1/4" NPT	iT06-06-1N	iT06-06-7N	iT06-06-3N	iT06-06-3W	iT06-06-13N	iT06-06-4N
• 1/4"
1/4" NPT	iT06-08-1N	iT06-08-7N	iT06-08-3N	iT06-08-3W	iT06-08-13N	iT06-08-4N
• 5/16"
1/4" NPT	iT06-10-1N	iT06-10-7N	iT06-10-3N	iT06-10-3W	iT06-10-13N	iT06-10-4N
• 3/8"
1/4" NPT	iT06-01-1N	iT06-01-7N	iT06-01-3N	iT06-01-3W	iT06-01-13N	iT06-01-4N
• 1/2"
3/8" NPT	iT10-06-1N	iT10-06-7N	iT10-06-3N	iT10-06-3W	iT10-06-13N	iT10-06-4N
• 1/4"
3/8" NPT	iT10-08-1N	iT10-08-7N	iT10-08-3N	iT10-08-3W	iT10-08-13N	iT10-08-4N
• 5/16"
3/8" NPT	iT10-10-1N	iT10-10-7N	iT10-10-3N	iT10-10-3W	iT10-10-13N	iT10-10-4N
• 3/8"
3/8" NPT	iT10-13-1N	iT10-13-7N	iT10-13-3N	iT10-13-3W	iT10-13-13N	iT10-13-4N
• 1/2"
1/2" NPT	iT13-06-1N	iT13-06-7N	iT13-06-3N	iT13-06-3W	iT13-06-13N	iT13-06-4N
• 1/4"
	iT13-06-41N		iT13-06-43N
1/2" NPT	iT13-08-1N	iT13-08-7N	iT13-08-3N	iT13-08-3W	iT13-08-13N	iT13-08-4N
• 5/16"
1/2" NPT	iT13-10-1N	iT13-10-7N	iT13-10-3N	iT13-10-3W	iT13-10-13N	iT13-10-4N
• 3/8"
1/2" NPT	iT13-13-1N	iT13-13-7N	iT13-13-3N	iT13-13-3W	iT13-13-13N	iT13-13-4N
• 1/2"
1/2" NPT	iT13-16-1N	iT13-16-7N	iT13-16-3N	iT13-16-3W	iT13-16-13N	iT13-16-4N
• 5/8"
1/2" NPT	iT13-19-1N	iT13-19-7N	iT13-19-3N	iT13-19-3W	iT13-19-13N	iT13-19-4N
• 3/4"
3/4" NPT	iT19-06-1N	iT19-06-7N	iT19-06-3N	iT19-06-3W		iT19-06-4N
• 1/4"
3/4" NPT	iT19-10-1N	iT19-10-7N	iT19-10-3N	iT19-10-3W		iT19-10-4N
• 3/8"
3/4" NPT	iT19-13-1N	iT19-13-7N	iT19-13-3N	iT19-13-3W		iT19-13-4N
• 1/2"
3/4" NPT	iT19-16-1N	iT19-16-7N	iT19-16-3N	iT19-16-3W		iT19-16-4N
• 5/8"
3/4" NPT	iT19-19-1N	iT19-19-7N	iT19-19-3N	iT19-19-3W		iT19-19-4N
• 3/4"
3/4" NPT	iT19-25-1N	iT19-25-7N	iT19-25-3N	iT19-25-3W		iT19-25-4N
• 1"
1" NPT	iT25-25-1N	iT25-25-7N	iT25-25-3N	iT25-25-3W		iT25-25-4N
• 1"

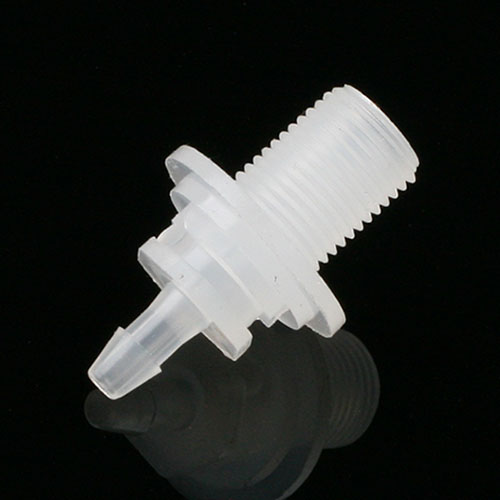

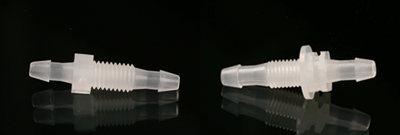

Bulkhead Adapter 사양표

	PP	NK	NN	WN	MN	HDPE
10-32 UNF	iB32U-0101-1N	iB32U-0101-7N	iB32U-0101-3N		iB32U-0101-13N	iB32U-0101-4N
• 1/16" • 1/16"	iP32U-201-71N			iP32U-201-73W
10-32 UNF	iB32U-0201-1N	iB32U-0201-7N	iB32U-0201-3N		iB32U-0201-13N	iB32U-0201-4N
• 1/16" • 1/16" (w/o Flange)	iP32U-20201-71N			iP32U-20201-73W
10-32 UNF	iB32U-0202-1N	iB32U-0202-7N	iB32U-0202-3N		iB32U-0202-13N	iB32U-0202-4N
• 3/32" • 1/16" (w/o Flange)	iP32U-202-71N			iP32U-202-73W
1/4-28 UNF	iB06U-0301-1N	iB06U-0301-7N	iB06U-0301-3N		iB06U-0301-13N	iB06U-0301-4N
• 3/32" • 3/32" (w/o Flange)	iP06U-20301-71N			iP06U-20301-73W
1/4-28 UNF	iB06U-0302-1N	iB06U-0302-7N	iB06U-0302-3N		iB06U-0302-13N	iB06U-0302-4N
• 1/8" • 1/16" (w/o Flange)	iP06U-20302-71N			iP06U-20302-73W
1/4-28 UNF	iB06U-0303-1N	iB06U-0303-7N	iB06U-0303-3N		iB06U-0303-13N	iB06U-0303-4N
• 1/8" • 3/32" (w/o Flange)	iP06U-203-71N			iP06U-203-73W
5/16-24 NC	iB08U-0401-1N	iB08U-0401-7N	iB08U-0401-3N		iB08U-0401-13N	iB08U-0401-4N
• 1/8" • 1/8" (w/ Flange)
5/16-24 NC	iB08U-0402-1N	iB08U-0402-7N	iB08U-0402-3N		iB08U-0402-13N	iB08U-0402-4N
• 5/32" • 1/16" (w/ Flange)
5/16-24 NC	iB08U-0403-1N	iB08U-0403-7N	iB08U-0403-3N		iB08U-0403-13N	iB08U-0403-4N
• 5/32" • 3/32" (w/ Flange)
5/16-24 NC	iB08U-0404-1N	iB08U-0404-7N	iB08U-0404-3N		iB08U-0404-13N	iB08U-0404-4N
• 5/32" • 1/8" (w/ Flange)
5/16-24 NC	iB08U-0501-1N	iB08U-0501-7N	iB08U-0501-3N		iB08U-0501-13N	iB08U-0501-4N
• 5/32" • 5/32" (w/ Flange)
5/16-24 NC	iB08U-0502-1N	iB08U-0502-7N	iB08U-0502-3N		iB08U-0502-13N	iB08U-0502-4N
• 3/16" • 1/16" (w/ Flange)
5/16-24 NC	iB08U-0503-1N	iB08U-0503-7N	iB08U-0503-3N		iB08U-0503-13N	iB08U-0503-4N
• 3/16" • 3/32" (w/ Flange)
5/16-24 NC	iB08U-0504-1N	iB08U-0504-7N	iB08U-0504-3N		iB08U-0504-13N	iB08U-0504-4N
• 3/16" • 1/8" (w/ Flange)
5/16-24 NC	iB08U-0505-1N	iB08U-0505-7N	iB08U-0505-3N		iB08U-0505-13N	iB08U-0505-4N
• 3/16" • 5/32" (w/ Flange)
1/8" NPSM	iB03M-0501-1N	iB03M-0501-7N	iB03M-0501-3N		iB03M-0501-13N	iB03M-0501-4N
• 3/16" • 3/16" (w/ Flange)
1/8" NPSM	iB03M-0502-1N	iB03M-0502-7N	iB03M-0502-3N		iB03M-0502-13N	iB03M-0502-4N
• 3/16" • 1/16" (w/ Flange)
1/8" NPSM	iB03M-0503-1N	iB03M-0503-7N	iB03M-0503-3N		iB03M-0503-13N	iB03M-0503-4N
• 3/16" • 3/32" (w/ Flange)
1/8" NPSM	iB03M-0504-1N	iB03M-0504-7N	iB03M-0504-3N		iB03M-0504-13N	iB03M-0504-4N
• 3/16" • 1/8" (w/ Flange)
1/8" NPSM	iB03M-0505-1N	iB03M-0505-7N	iB03M-0505-3N		iB03M-0505-13N	iB03M-0505-4N
• 3/16" • 5/32" (w/ Flange)
1/8" NPSM	iB03M-0601-1N	iB03M-0601-7N	iB03M-0601-3N		iB03M-0601-13N	iB03M-0601-4N
• 3/16" • 3/16" (w/ Flange)
1/8" NPSM	iB03M-0602-1N	iB03M-0602-7N	iB03M-0602-3N		iB03M-0602-13N	iB03M-0602-4N
• 1/4" • 1/16" (w/ Flange)
1/8" NPSM	iB03M-0603-1N	iB03M-0603-7N	iB03M-0603-3N		iB03M-0603-13N	iB03M-0603-4N
• 1/4" • 3/32" (w/ Flange)
1/8" NPSM	iB03M-0604-1N	iB03M-0604-7N	iB03M-0604-3N		iB03M-0604-13N	iB03M-0604-4N
• 1/4" • 1/8" (w/ Flange)
1/8" NPSM	iB03M-0605-1N	iB03M-0605-7N	iB03M-0605-3N		iB03M-0605-13N	iB03M-0605-4N
• 1/4" • 5/32" (w/ Flange)
1/8" NPSM	iB03M-0606-1N	iB03M-0606-7N	iB03M-0606-3N		iB03M-0606-13N	iB03M-0606-4N
• 1/4" • 3/16" (w/ Flange)
1/4" NPSM	iB06M-0501-1N	iB06M-0501-7N	iB06M-0501-3N		iB06M-0501-13N	iB06M-0501-4N
• 1/4" • 1/4" (w/ Flange)
1/4" NPSM	iB06M-0502-1N	iB06M-0502-7N	iB06M-0502-3N		iB06M-0502-13N	iB06M-0502-4N
• 3/16" • 1/16" (w/ Flange)
1/4" NPSM	iB06M-0503-1N	iB06M-0503-7N	iB06M-0503-3N		iB06M-0503-13N	iB06M-0503-4N
• 3/16" • 3/32" (w/ Flange)
1/4" NPSM	iB06M-0504-1N	iB06M-0504-7N	iB06M-0504-3N		iB06M-0504-13N	iB06M-0504-4N
• 3/16" • 1/8" (w/ Flange)
1/4" NPSM	iB06M-0505-1N	iB06M-0505-7N	iB06M-0505-3N		iB06M-0505-13N	iB06M-0505-4N
• 3/16" • 5/32" (w/ Flange)
1/4" NPSM	iB06M-0601-1N	iB06M-0601-7N	iB06M-0601-3N		iB06M-0601-13N	iB06M-0601-4N
• 3/16" • 3/16" (w/ Flange)
1/4" NPSM	iB06M-0602-1N	iB06M-0602-7N	iB06M-0602-3N		iB06M-0602-13N	iB06M-0602-4N
• 1/4" • 1/16" (w/ Flange)
1/4" NPSM	iB06M-0603-1N	iB06M-0603-7N	iB06M-0603-3N		iB06M-0603-13N	iB06M-0603-4N
• 1/4" • 3/32" (w/ Flange)
1/4" NPSM	iB06M-0604-1N	iB06M-0604-7N	iB06M-0604-3N		iB06M-0604-13N	iB06M-0604-4N
• 1/4" • 1/8" (w/ Flange)
1/4" NPSM	iB06M-0605-1N	iB06M-0605-7N	iB06M-0605-3N		iB06M-0605-13N	iB06M-0605-4N
• 1/4" • 5/32" (w/ Flange)
1/4" NPSM	iB06M-0606-1N	iB06M-0606-7N	iB06M-0606-3N		iB06M-0606-13N	iB06M-0606-4N
• 1/4" • 3/16" (w/ Flange)
1/4" NPSM	iB06M-0806-1N	iB06M-0806-7N	iB06M-0806-3N			iB06M-0806-4N
• 1/4" • 1/4" (w/ Flange)
1/4" NPSM	iB06M-0808-1N	iB06M-0808-7N	iB06M-0808-3N			iB06M-0808-4N
• 5/16" • 1/4" (w/ Flange)
1/4" NPSM	iB06M-1006-1N	iB06M-1006-7N	iB06M-1006-3N			iB06M-1006-4N
• 5/16" • 5/16" (w/ Flange)
1/4" NPSM	iB06M-1008-1N	iB06M-1008-7N	iB06M-1008-3N			iB06M-1008-4N
• 3/8" • 1/4" (w/ Flange)
1/4" NPSM	iB06M-1010-1N	iB06M-1010-7N	iB06M-1010-3N			iB06M-1010-4N
• 3/8" • 5/16" (w/ Flange)

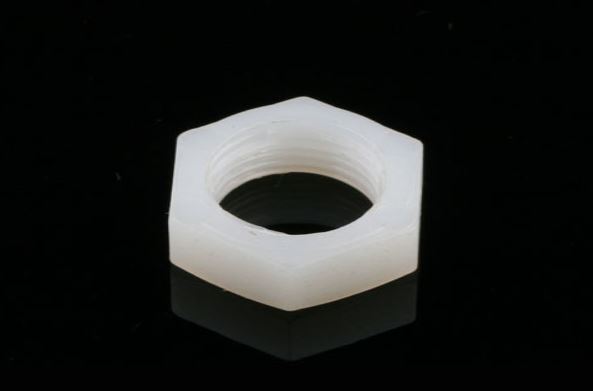

Nuts - Bulkhead & Panel Mount 사양표

	NN	BN
10-32 UNF	NT32U-3N
1/4-28 UNF	NT06U-3N
5/16-24 UNF	NT08U-3N
1/8" NPSF	NT03F-3N
1/4" NPSF	NT06F-3N	NT06F-3B

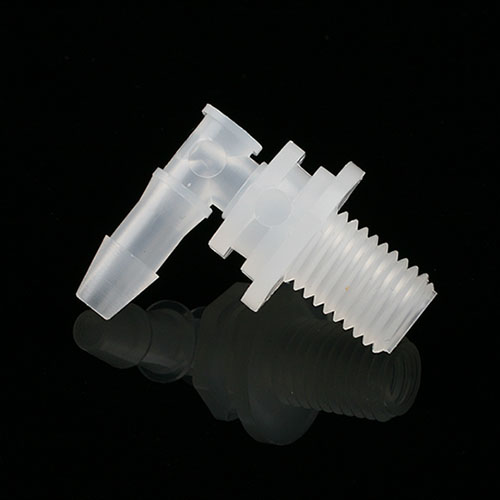

Elbow Bulkhead 사양표

	PP	NK	NN	MN	BN	HDPE
10-32 UNF	LB32U-0101-1N	LB32U-0101-7N	LB32U-0101-3N	LB32U-0101-13N	LB32U-0101-3B	LB32U-0101-4N
• 1/16" • 1/16" (w/o Flange)
10-32 UNF	LB32U-0201-1N	LB32U-0201-7N	LB32U-0201-3N	LB32U-0201-13N	LB32U-0201-3B	LB32U-0201-4N
• 3/32" • 1/16" (w/o Flange)
10-32 UNF	LB32U-0202-1N	LB32U-0202-7N	LB32U-0202-3N	LB32U-0202-13N	LB32U-0202-3B	LB32U-0202-4N
• 3/32" • 3/32" (w/o Flange)
1/4-28 UNF	LB06U-0301-1N	LB06U-0301-7N	LB06U-0301-3N	LB06U-0301-13N	LB06U-0301-3B	LB06U-0301-4N
• 3/32" • 3/32" (w/o Flange)
1/4-28 UNF	LB06U-0302-1N	LB06U-0302-7N	LB06U-0302-3N	LB06U-0302-13N	LB06U-0302-3B	LB06U-0302-4N
• 1/8" • 1/16" (w/o Flange)
1/4-28 UNF	LB06U-0303-1N	LB06U-0303-7N	LB06U-0303-3N	LB06U-0303-13N	LB06U-0303-3B	LB06U-0303-4N
• 1/8" • 3/32" (w/o Flange)
5/16-24 NC	LB08U-0401-1N	LB08U-0401-7N	LB08U-0401-3N	LB08U-0401-13N	LB08U-0401-3B	LB08U-0401-4N
• 1/8" • 1/8" (w/ Flange)
5/16-24 NC	LB08U-0402-1N	LB08U-0402-7N	LB08U-0402-3N	LB08U-0402-13N	LB08U-0402-3B	LB08U-0402-4N
• 5/32" • 1/16" (w/ Flange)
5/16-24 NC	LB08U-0403-1N	LB08U-0403-7N	LB08U-0403-3N	LB08U-0403-13N	LB08U-0403-3B	LB08U-0403-4N
• 5/32" • 3/32" (w/ Flange)
5/16-24 NC	LB08U-0404-1N	LB08U-0404-7N	LB08U-0404-3N	LB08U-0404-13N	LB08U-0404-3B	LB08U-0404-4N
• 5/32" • 1/8" (w/ Flange)
5/16-24 NC	LB08U-0501-1N	LB08U-0501-7N	LB08U-0501-3N	LB08U-0501-13N	LB08U-0501-3B	LB08U-0501-4N
• 5/32" • 5/32" (w/ Flange)
5/16-24 NC	LB08U-0502-1N	LB08U-0502-7N	LB08U-0502-3N	LB08U-0502-13N	LB08U-0502-3B	LB08U-0502-4N
• 3/16" • 1/16" (w/ Flange)
5/16-24 NC	LB08U-0503-1N	LB08U-0503-7N	LB08U-0503-3N	LB08U-0503-13N	LB08U-0503-3B	LB08U-0503-4N
• 3/16" • 3/32" (w/ Flange)
5/16-24 NC	LB08U-0504-1N	LB08U-0504-7N	LB08U-0504-3N	LB08U-0504-13N	LB08U-0504-3B	LB08U-0504-4N
• 3/16" • 1/8" (w/ Flange)
5/16-24 NC	LB08U-0505-1N	LB08U-0505-7N	LB08U-0505-3N	LB08U-0505-13N	LB08U-0505-3B	LB08U-0505-4N
• 3/16" • 5/32" (w/ Flange)
1/8" NPSM	LB03M-0501-1N	LB03M-0501-7N	LB03M-0501-3N	LB03M-0501-13N	LB03M-0501-3B	LB03M-0501-4N
• 3/16" • 3/16" (w/ Flange)
1/8" NPSM	LB03M-0502-1N	LB03M-0502-7N	LB03M-0502-3N	LB03M-0502-13N	LB03M-0502-3B	LB03M-0502-4N
• 3/16" • 1/16" (w/ Flange)
1/8" NPSM	LB03M-0503-1N	LB03M-0503-7N	LB03M-0503-3N	LB03M-0503-13N	LB03M-0503-3B	LB03M-0503-4N
• 3/16" • 3/32" (w/ Flange)
1/8" NPSM	LB03M-0504-1N	LB03M-0504-7N	LB03M-0504-3N	LB03M-0504-13N	LB03M-0504-3B	LB03M-0504-4N
• 3/16" • 1/8" (w/ Flange)

Female Junction 사양표

	PP
10-32 UNF •	iF32U
Straight
10-32 UNF •	LF32U
Elbow
10-32 UNF •	TF32U
Tee
10-32 UNF •	XF32U
Cross

Adapter Panel Mount 사양표

	PP	NK	NN	MN	HDPE
10-32 UNF	iP32U-01-1N	iP32U-01-7N	iP32U-01-3N	iP32U-01-13N	iP32U-01-4N
w/o Flange
• 1/16"
10-32 UNF	iP32U-02-1N	iP32U-02-7N	iP32U-02-3N	iP32U-02-13N	iP32U-02-4N
w/o Flange
• 3/32"
10-32 UNF	iP32U-03-1N	iP32U-03-7N	iP32U-03-3N	iP32U-03-13N	iP32U-03-4N
w/o Flange
• 1/8"
10-32 UNF	iP32U-04-1N	iP32U-04-7N	iP32U-04-3N	iP32U-04-13N	iP32U-04-4N
w/o Flange
• 5/32"
1/4-28 UNF	iP06U-01-1N	iP06U-01-7N	iP06U-01-3N	iP06U-01-13N	iP06U-01-4N
w/o Flange
• 1/16"
1/4-28 UNF	iP06U-02-1N	iP06U-02-7N	iP06U-02-3N	iP06U-02-13N	iP06U-02-4N
w/o Flange
• 3/32"
1/4-28 UNF	iP06U-03-1N	iP06U-03-7N	iP06U-03-3N	iP06U-03-13N	iP06U-03-4N
w/o Flange
• 1/8"
1/4-28 UNF	iP06U-04-1N	iP06U-04-7N	iP06U-04-3N	iP06U-04-13N	iP06U-04-4N
w/o Flange
• 5/32"
1/4-28 UNF	iP06U-05-1N	iP06U-05-7N	iP06U-05-3N	iP06U-05-13N	iP06U-05-4N
w/o Flange
• 3/16"
5/16-24 UNF	iP08U-01-1N	iP08U-01-7N	iP08U-01-3N	iP08U-01-13N	iP08U-01-4N
w/ Flange
• 1/16"
5/16-24 UNF	iP08U-02-1N	iP08U-02-7N	iP08U-02-3N	iP08U-02-13N	iP08U-02-4N
w/ Flange
• 3/32"
5/16-24 UNF	iP08U-03-1N	iP08U-03-7N	iP08U-03-3N	iP08U-03-13N	iP08U-03-4N
w/ Flange
• 1/8"
5/16-24 UNF	iP08U-04-1N	iP08U-04-7N	iP08U-04-3N	iP08U-04-13N	iP08U-04-4N
w/ Flange
• 5/32"
5/16-24 UNF	iP08U-05-1N	iP08U-05-7N	iP08U-05-3N	iP08U-05-13N	iP08U-05-4N
w/ Flange
• 3/16"
5/16-24 UNF	iP08U-06-1N	iP08U-06-7N	iP08U-06-3N	iP08U-06-13N	iP08U-06-4N
w/ Flange
• 3/16"
1/8" NPSM	iP03M-01-1N	iP03M-01-7N	iP03M-01-3N	iP03M-01-13N	iP03M-01-4N
w/ Flange
• 1/16"
1/8" NPSM	iP03M-02-1N	iP03M-02-7N	iP03M-02-3N	iP03M-02-13N	iP03M-02-4N
w/ Flange
• 3/32"
1/8" NPSM	iP03M-03-1N	iP03M-03-7N	iP03M-03-3N	iP03M-03-13N	iP03M-03-4N
w/ Flange
• 1/8"
1/8" NPSM	iP03M-04-1N	iP03M-04-7N	iP03M-04-3N	iP03M-04-13N	iP03M-04-4N
w/ Flange
• 5/32"
1/8" NPSM	iP03M-05-1N	iP03M-05-7N	iP03M-05-3N	iP03M-05-13N	iP03M-05-4N
w/ Flange
• 3/16"
1/8" NPSM	iP03M-06-1N	iP03M-06-7N	iP03M-06-3N	iP03M-06-13N	iP03M-06-4N
w/ Flange
• 1/4"
1/4" NPSM	iP06M-01-1N	iP06M-01-7N	iP06M-01-3N	iP06M-01-13N	iP06M-01-4N
w/ Flange
• 1/16"
1/4" NPSM	iP06M-02-1N	iP06M-02-7N	iP06M-02-3N	iP06M-02-13N	iP06M-02-4N
w/ Flange
• 3/32"
1/4" NPSM	iP06M-03-1N	iP06M-03-7N	iP06M-03-3N	iP06M-03-13N	iP06M-03-4N
w/ Flange
• 1/8"
1/4" NPSM	iP06M-04-1N	iP06M-04-7N	iP06M-04-3N		iP06M-04-4N
w/ Flange
• 5/32"
1/4" NPSM	iP06M-05-1N	iP06M-05-7N	iP06M-05-3N		iP06M-05-4N
w/ Flange
• 3/16"
1/4" NPSM	iP06M-06-1N	iP06M-06-7N	iP06M-06-3N		iP06M-06-4N
w/ Flange
• 1/4"
1/4" NPSM	iP06M-08-1N	iP06M-08-7N	iP06M-08-3N		iP06M-08-4N
w/ Flange
• 5/16"
1/4" NPSM	iP06M-10-1N	iP06M-10-7N	iP06M-10-3N		iP06M-10-4N
w/ Flange
• 3/8"
1/4" NPSM	iP06M-13-1N	iP06M-13-7N	iP06M-13-3N		iP06M-13-4N
w/ Flange
• 1/2"

Elbow Panel Mount 사양표

	PP	NK	NN	MN	HDPE
10-32 UNF	LP32U-01-1N	LP32U-01-7N	LP32U-01-3N	LP32U-01-13N	LP32U-01-4N
w/o Flange • 1/16"
10-32 UNF	LP32U-02-1N	LP32U-02-7N	LP32U-02-3N	LP32U-02-13N	LP32U-02-4N
w/o Flange • 3/32"
10-32 UNF	LP32U-03-1N	LP32U-03-7N	LP32U-03-3N	LP32U-03-13N	LP32U-03-4N
w/o Flange • 1/8"
1/4-28 UNF	LP06U-01-1N	LP06U-01-7N	LP06U-01-3N	LP06U-01-13N	LP06U-01-4N
w/o Flange • 1/16"
1/4-28 UNF	LP06U-02-1N	LP06U-02-7N	LP06U-02-3N	LP06U-02-13N	LP06U-02-4N
w/o Flange • 3/32"
1/4-28 UNF	LP06U-03-1N	LP06U-03-7N	LP06U-03-3N	LP06U-03-13N	LP06U-03-4N
w/o Flange • 1/8"
1/4-28 UNF	LP06U-04-1N	LP06U-04-7N	LP06U-04-3N	LP06U-04-13N	LP06U-04-4N
w/o Flange • 5/32"
5/16-24 UNF	LP08U-02-1N	LP08U-02-7N	LP08U-02-3N	LP08U-02-13N	LP08U-02-4N
w/ Flange • 3/32"
5/16-24 UNF	LP08U-03-1N	LP08U-03-7N	LP08U-03-3N	LP08U-03-13N	LP08U-03-4N
w/ Flange • 1/8"
5/16-24 UNF	LP08U-04-1N	LP08U-04-7N	LP08U-04-3N	LP08U-04-13N	LP08U-04-4N
w/ Flange • 5/32"
1/8" NPSM	LP03M-02-1N	LP03M-02-7N	LP03M-02-3N	LP03M-02-13N	LP03M-02-4N
w/ Flange • 3/32"
1/8" NPSM	LP03M-03-1N	LP03M-03-7N	LP03M-03-3N	LP03M-03-13N	LP03M-03-4N
w/ Flange • 1/8"
1/8" NPSM	LP03M-04-1N	LP03M-04-7N	LP03M-04-3N	LP03M-04-13N	LP03M-04-4N
w/ Flange • 5/32"
1/8" NPSM	LP03M-05-1N	LP03M-05-7N	LP03M-05-3N	LP03M-05-13N	LP03M-05-4N
w/ Flange • 3/16"
1/8" NPSM	LP03M-06-1N	LP03M-06-7N	LP03M-06-3N	LP03M-06-13N	LP03M-06-4N
w/ Flange • 1/4"
1/4" NPSM	LP06M-02-1N	LP06M-02-7N	LP06M-02-3N	LP06M-02-13N	LP06M-02-4N
w/ Flange • 3/32"
1/4" NPSM	LP06M-03-1N	LP06M-03-7N	LP06M-03-3N	LP06M-03-13N	LP06M-03-4N
w/ Flange • 1/8"
1/4" NPSM	LP06M-04-1N	LP06M-04-7N	LP06M-04-3N	LP06M-04-13N	LP06M-04-4N
w/ Flange • 5/32"
1/4" NPSM	LP06M-05-1N	LP06M-05-7N	LP06M-05-3N	LP06M-05-13N	LP06M-05-4N
w/ Flange • 3/16"
1/4" NPSM	LP06M-06-1N	LP06M-06-7N	LP06M-06-3N	LP06M-06-13N	LP06M-06-4N
w/ Flange • 1/4"
